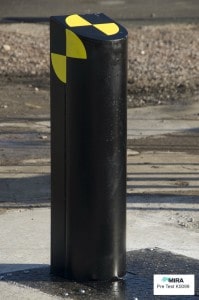

SSSB Cobra Shallow Mount Retractable Bollard - Security Solutions GB

After identifying a need for shallow mounted security products, perimeter access specialist, Security Solutions has developed the SSSB Cobra Shallow Mount Retractable  Bollard which has been tested to BSI PAS 68:2010, (impact test specification for vehicle security barriers) and received the following classification: V7500(N2)/48/90:0/0 V7500(N2)/48/45:0/0 & V7500(N2)/64/90:0/0

SSSB Cobra Shallow Mount Retractable Bollard - Security Solutions GB

Increasing underground services constraints highlighted the need for a Shallow Mount Crash Rated Retractable Bollard to overcome the installation challenges of traditional foundations require for high security products.

Successfully testing at speeds of 48 kph and 64 kph bringing a 7.5 tonne vehicle to a complete stop. The SSSB Cobra Shallow Mount Retractable Bollard acts as a visual deterrent whilst enhancing the aesthetics of the surrounding environment and is a cost effective product for the Anti Terrorist and the High Security PAS market.

BSi PAS68:2010 Classification explained:

V7500(N2)/48/90:0/0, V7500(N2)/48/45:0/0 & V7500(N2)/64/90:0/0

TEST METHOD (V,P,D) VEHICLE, PENDULUM OR DESIGN

TEST WEIGHT (KG) PLUS VEHICLE TYPE

48 IS THE SPEED IN KM/H

90 & 45 IS THE IMPACT ANGLE

0.0 (FIRST DIGIT) IS THE VEHICLE PENETRATION

0.0 (SECOND DIGIT) IS THE DISPERSION DISTANCE OVER 25KG PAST FRONT OF BARRIER

SSSB Cobra Shallow Mount Retractable Bollard - Security Solutions GB
Applications: Anti Terrorist Applications, Embassies, Government Buildings, MOD Sites, Cash Handling Sites, Airports, Train Stations, Harbour Authorities, This list is not exhaustive
Construction: Bollard Casing – Steel

Inner Bollard – Steel

Casing Dimensions: 1500mm (L) x 800mm (W) x 405mm (D)
Bollard Height: 1000mm
Surface Finish : Standard Black, Other RAL or BS Colours Available

SSSB Cobra Shallow Mount Retractable Bollard
