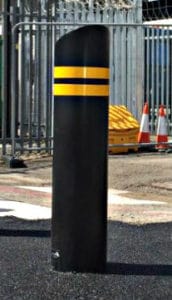

The SSFSMB Cobra Crash Tested Shallow Mount Fixed Bollards discreetly protects sites where underground services prohibit the installation of traditional deep foundation bollards to provide practical practical Hostile Vehicle Mitigation (HVM) solutions whilst considering aesthetics and public perception.
Using a standard design approach, we offer site specific solutions whilst giving consideration to in the installation conditions to provide protection from a range of determined threats from vandalism to the extreme of a Vehicle Borne Improvised Explosive Device (VBIED)
The range of SSFB Cobra Crash Tested Fixed Bollards are designed and manufactured by engineers with significant experience in the fields of high security and access control and have been independently physically impact tested in a number of
BSi PAS68:2010 Classification explained:
V7500(N2)/48/90:0/0 V7500(N2)/64/90:10.3/4.0 V7500(N3)/80/90:6.0/18.8
TEST METHOD (V,P,D) VEHICLE, PENDULUM OR DESIGN
TEST WEIGHT (KG) PLUS VEHICLE TYPE
64 IS THE SPEED IN KM/H
90 IS THE IMPACT ANGLE
0.0 (FIRST DIGIT) IS THE VEHICLE PENETRATION
0.0 (SECOND DIGIT) IS THE DISPERSION DISTANCE OVER 25KG PAST FRONT OF BARRIER
| Applications: | Anti-Terrorist Applications, Embassies, Government Buildings, MOD Sites, Cash Handling Sites, Airports, Train Stations, Harbour Authorities, Shopping Centres, Banks, Palaces. This list is not exhaustive | |
| Foundation Depth: | 400mm | |
| Bollard Dimensions: | 170mm x 170mm (48kph)
150mm x 150mm (64kph) 200mm x 200mm (80kph) |
|
| Bollard Height: | 900mm Above Ground Level 48 & 64kph 1050mm Above Ground Level 80kph | |
| Surface Finish: | Zinc Primed & Powder Coated in RAL or BS Colour, Options available for Stainless Steel, Mild Steel or PU Sleeve |
SSFSMB Cobra Crash Tested Shallow Mount Fixed Bollards
