SSCB Crash Rated Road Blocker V/7500(N2)/48/90:0/0
The SSCB Crash Rated Road Blocker has been designed to offer zero site penetration, where perimeter security is of the utmost priority.
Responding to market demands, perimeter access specialist, Security Solutions, has developed a cost effective crash rated road-blocker which meets BSI PAS 68:2010, (impact test specification for vehicle security barriers).
As many modern traffic-flows on high security sites are designed to limit vehicle speeds, Security Solutions realised that there was a demand for a road blocker to be crash tested to just 30mph.

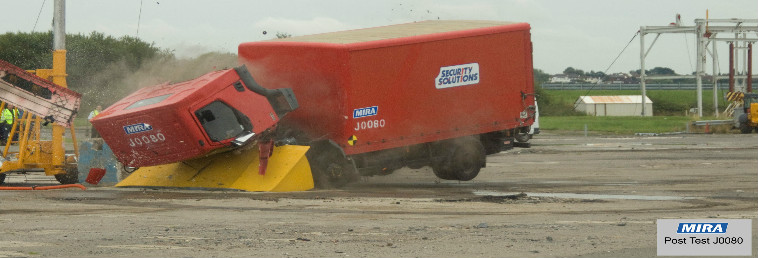

This new road blocker, SSCB, not only acts as a visual deterrent but also offers zero site penetration up to speeds of 30mph. Footage of it bringing a 7.5 tonne vehicle to a complete halt is available to view see videos.
Security Solutions' cheese wedge shaped road blocker is sunk into the roadway as one complete unit, for ease of installation and acts as an aggressive visual deterrent. It is made of a galvanised steel box construction and two hydraulic rams. It is bedded into a pit with integral sub pumps for drainage.
Security Solutions offers a complete design, build, installation and maintenance service, using its own groundwork engineers to guarantee accurate installation.
CPNI's reference number explained:
V7500(N2)/48/90:0/0
TEST METHOD (V,P,D) VEHICLE, PENDULUM OR DESIGN
TEST WEIGHT (KG) PLUS VEHICLE TYPE
48 IS THE SPEED IN KM/H
90 IS THE IMPACT ANGLE
0.0 (FIRST DIGIT) IS THE VEHICLE PENETRATION
0.0 (SECOND DIGIT) IS THE DISOERSION DISTANCE OVER 25KG PAST FRONT OF BARRIER
Details correct at time of publication but design and specification may change at any time.
| Applications: | Anti Terrorist Applications, Embassies, Government Buildings, MOD Applications, Cash Handling Sites, Airports, Harbour Authorities. This list is not exhaustive | |
| Construction: | Frame - Steel Hollow Section | |
| Top Plate: | Durbar - Steel | |
| Span: | 3m span as standard | |
| Lift: | 800mm (20 tonne axle weight) | |
| Surface Finish: | Standard Black & Yellow Chevrons, other Standard Ral or BS Colours are available - Fully Galvanised as standard | |
| Speed: | 4 - 7 Seconds | |
| Supply: | 400v 3Ph 50Hz - Standard: 230v 1Ph 50Hz - Option | |
| Load: | 20 Amps | |
| Emergency Override: | Manual override is included as standard | |
| Control Systems: | Card Reader Systems, Hand Held Radio Control, Digital Keypad, Push Button, Vehicle Tagging Systems, Biometric Readers, Induction Loop, Photo Cell | |
| Accessories: | Traffic Lights, Signage, Flashing/Audible Warning Unit |
